Repair Log… (7/4/11)

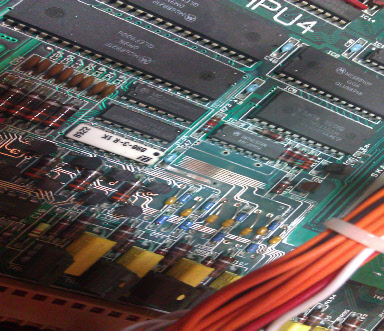

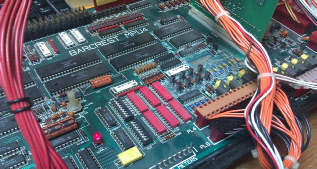

MPU4 – MOD 2



Fault diagnosis.



Slides pulse on start-up.

Slides continue to randomly pulse and chatter during operation.

Incorrect caps fitted from a previous repair. (C9-C15)

Some battery residue.



Otherwise MPU boots and runs normally, no lamp faults detected, all other aspects of the board seem OK.



Clean up battery residue with fibre-glass pencil.



First replace incorrect capacitors C9-C15 1000pF



Replace T12-T19 = BC338 (transistor pre-drives for payout triacs). No slide pulse on start-up. OK.

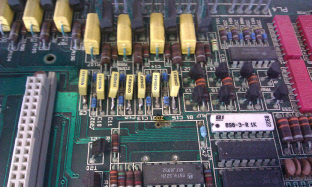

Slides still pulse on startup, so replace C1-C8 = 1000pf (.1uf) – Poly Cap. OK

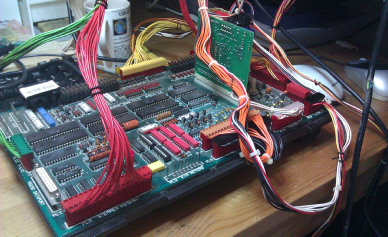

Run board, slides remain calm. OK.



Soak test – 2 hour (short test) OK.



Battery not fitted as board is not needed at the moment.



Repaired.
